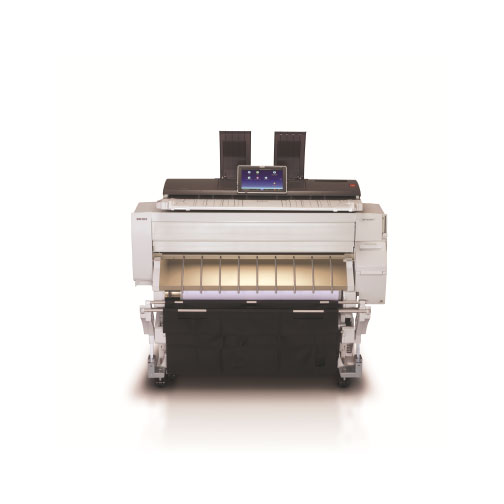

MP CW2201SP

MP CW2201SP er designet til CAD/GIS og den grafiske sektor. Med sin forbedrede hastighed og billedkvalitet kan du forøge dine Mono EP volume og dine farveproduktioner. GEL-JeTM vandfast blæk teknologi og innovative funktioner, såsom det intuitive smart operation panel og auto nozzle detection hjælper med at booste din produktivitet og konkurrenceevne. Alle funktionerne gør maskinen ideel til farve GA entry level applikationer*, både til indendørs og udendørs brug.

*Papirmedier

KOMMISSIONENS FORORDNING (EU) 2019/2020.
Produktets lyskilde er ikke beregnet til andre anvendelser end billedudskrivning.

Funktioner og fordele

CAD fordele
  • Udskriv, kopier og scan – alt i fuldfarve
  • Leverer højkvalitets farveoutput på ingen tid
  • Gør farveoutput muligt til en overkommelig pris
GA fordele
  • Innovative GEL-Jet vandfast blæk teknologi
  • Super præcision, smudsfri og UV-resistent
  • Print på Blue Back Paper og undgå at man kan se igennem

Specifikationer
GENERELT
Configuration Console
Copying/printing process On-demand Piezo inkjet system (pigment-based ink), Pigment based ink (all 4 colours)
Paper source: standard Roll paper feeder
Paper source: optional Roll paper feeder
Resolution 1.200 x 1.200 dpi
Zoom 25% to 400% by 1% increments
Reproduction ratio Metric: 25%, 35.4%, 50%, 70.7%, 141.4%, 200%, 282.8%, 400%, Engineer (inch): 25%, 33.3%, 50%, 64.7%, 129.4%, 200%, 258.8%, 400%, Architecture: 25%, 33.3%, 50%, 66.7%, 133.3%, 200%, 266.7%, 400%
Cutting method Preset size cut, Synchronised cut, Variable cut
Memory capacity 4 GB
Hard Disk Drive 320 GB (shared with copier/printer/scanner)
Power source 120 - 127 V, 15 A (max.), 60 Hz
Dimensions (W x D x H) 1.384 x 675 x 1.219 mm, 54,5 x 26,6 x 48"
Weight 120 kg, 265 lbs.
KOPIMASKINE
First copy time from standby mode A0 SEF: B/W: high speed copy: 51 seconds, standard: 71 seconds, A0 SEF: full colour: high speed copy: 81 seconds, standard: 155 seconds, A1 LEF: B/W: high speed copy: 29 seconds, standard: 41 seconds, A1 LEF: full colour: high speed copy: 53 seconds, standard: 84 seconds
Copying speed A1, LEF (B/W): high speed copy: 3,8 cpm, standard 2 cpm, A1, LEF (colour): high speed copy: 2,1 cpm, standard 1,2 cpm, A0, SEF (B/W): high speed copy: 1,9 cpm, standard 1,1 cpm, A0, SEF (colour): high speed copy: 1,1 cpm, standard 0,6 cpm
Multiple copying 1 to 99
PRINTER
Controller board Embedded
CPU - Intel Atom Processor BayTrail-I: 1,75 GHz
Print speed A1 LEF: B/W: 3,8 ppm, Colour: 2,1 ppm, A0 SEF: B/W: 1,9 ppm, Colour: 1,1 ppm
Print resolution Speed priority (drawing): 600 x 300 dpi, Speed priority: 600 x 600 dpi, Standard: 600 x 600 dpi, Quality priority: 600 x 600 dpi, Quality priority mode for only coated paper, film (matted) and special paper: 1.200 x 1.200 dpi
Print drivers Adobe Postscript, HDI
Supported file formats HP-GL, HP-GL2, PostScript 3
Fonts European 136 fonts (PS3)
Network interface: standard 10/100/1000 base-TX, USB 2.0, USB Host
Network interface: optional Wireless LAN IEEE 802.11a/g/n
Network protocol: standard TCP/IP (IPv4, IPv6)
Network protocol: optional IPX/SPS
Standard MIB MIB-II (RFC1213), Host Resource (RFC1514), Printer MIB (RFC1759)
Private MIB Original
Supported CAD version HDI Driver HDI AutoCAD 2007-2016
Media to print Yes (JPEG/TIFF/PDF)
Printer features Unauthorized Copy Prevention, One Direction, WSD Printer, Color Matching, POP, CUD, Media to Print (JPEG/TIFF/PDF), PDF Direct Print, Ink save mode (save ratio: 50%)
SCANNER
Color scan Standard
Scan to multimedia Standard
Media to print Standard
Scan speed: colour 26,7 mm/s or 1,05 ips (600 dpi), 40 mm/s or 1,57 ips (200 dpi)
Scan speed: B/W 80 mm/s or 3,14 ips (600 dpi), 160 mm/s or 6,3 ips (200 dpi)
Scan resolution 300 - 600 dpi, TWAIN: up to 2.400 dpi
Scan modes: colour Text/Photo, Photo
Scan modes: B/W Text, Text/Photo, Text/Line Art (default), Grayscale
Scan detection Auto Detect, Preset Paper Size, Custom Size
RGB support Standard
Scan protocols - Network TCP/IP
Scan protocols - Scan to email SMTP
Scan protocols - Scan to folder SMB, FTP
Compression method - B/W MH, MR, MMR, MMR (default), JBIG2
Compression method - Colour JPEG (5 levels)
Image density Auto Density Selection (effective only in B&W and Grayscale Scan Mode), Manual: 7 levels (effective in B&W/Grayscale and Full Color Scan Mode)
Scanner features Scan-to-Email (SMTP), Scan-to-Folder (SMB, FTP), Network TWAIN, Mixed Size Mode, Image Rotation
PAPIRHÅNDTERING
Original feed Sheet
Original set position Center
Original copy/scan size Minimum: 210 - 210 mm, Minimum: 8,5 - 8,5", Maximum: 914 - 15.000 mm, Maximum: 36 - 590"
Original paper width 210 / 257 / 297 / 364 / 420 / 440 / 490 / 515 / 594 /610 / 620 / 625/ 660 / 680 / 707 / 728 / 800 / 841 / 880 / 914.4 mm, 8.5" / 9" / 11" / 12" / 17" / 18" / 22" / 24" / 30" / 34" / 36"
Original paper weight Paper feed guarantee: 0,035 - 1 mm, Image quality guarantee: 0,09 - 0,2 mm (64 - 190 g/m²)
Output paper size Maximum Roll Feeder: 914,4 mm width, 15.000 mm length, Maximum Roll Feeder: 36" width, 590" length, Maximum bypass: 914,4 mm width, 2.000 mm length, Maximum bypass: 36" width, 78,7" length
Output paper weight Roll Paper: 0,068 - 0,2 mm (51 -200 g/m²), Cut Sheet: 0,068 - 0,4 mm (51 -220 g/m²)
Roll paper width 297 / 364 / 420 / 440 / 490 / 515 / 594 / 610 / 620 / 625 / 660 / 680 / 707 / 728 / 800 / 841 / 880 / 914.4 mm, 11" / 12" / 13.5" / 15" / 17" / 18" / 22" / 24" / 30" / 34" / 36"
Paper feeding capacity Width: 279,4 - 914 mm, 8,5" - 36", Maximum length: 5.905 mm, 150.000", Maximum diameter: 176 mm, 6,7", Bypass: 1 sheet
Paper output capacity 10 sheets (plain paper)
MILJØ
Maximum power consumption 180 W

Relateret software og apps

  • TotalFlow PrintCopy Tool

    TotalFlow PrintCopy Tool

    TotalFlow Print Tool helps you efficiently print large quantities of drawings and documents, while Copy Tool links wide-format multifunction printers with a colour plotter for colour copying.
